Series 5170 Gauss Meters and Probes
|

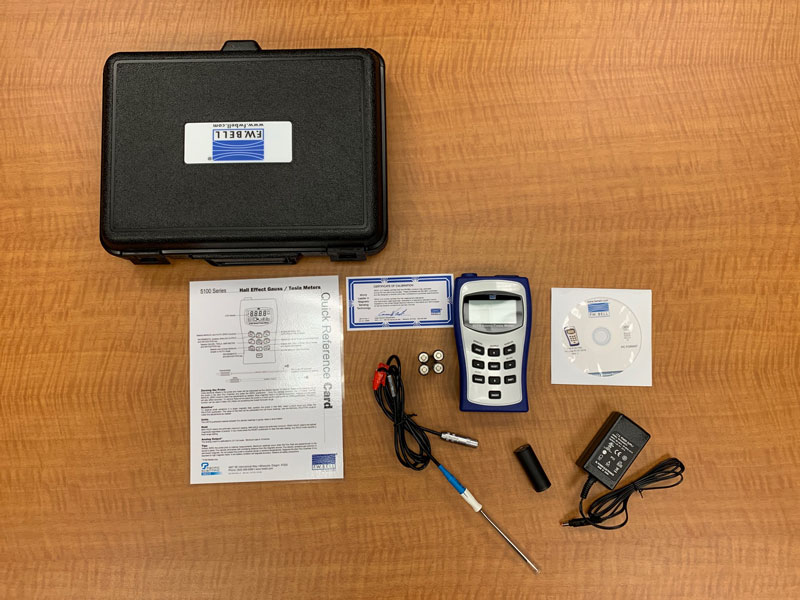

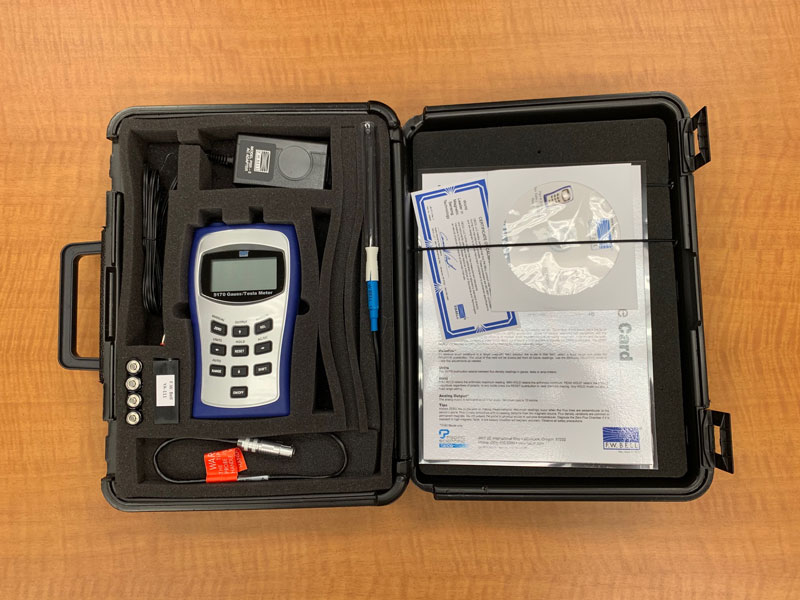

The 5170 series gauss meter (includes STH17-0404
transverse probe and YA-111 zero gauss chamber.
- Probe included
- Auto zero
- Min./Max./Peak hold
- Auto range
- True RMS
| 5170 Series Specifications |
| Basic DC accuracy: |
2% |
| Frequency |
DC-20 kHz |
| Measuring range: |
1G (low-field probe only) - 20 kG |
| Resolution: |
1 mG - 10 G |
| Readings: |
Gauss, Tesla, Amps/Meter |
| Analog output: |
None |
| Operating temperature: |
0ºC to 50ºC |
| Power: |
4 AA batteries |
| Dimensions |
6.9 in x 3.9 in x 1.44 in. |
|
Probes

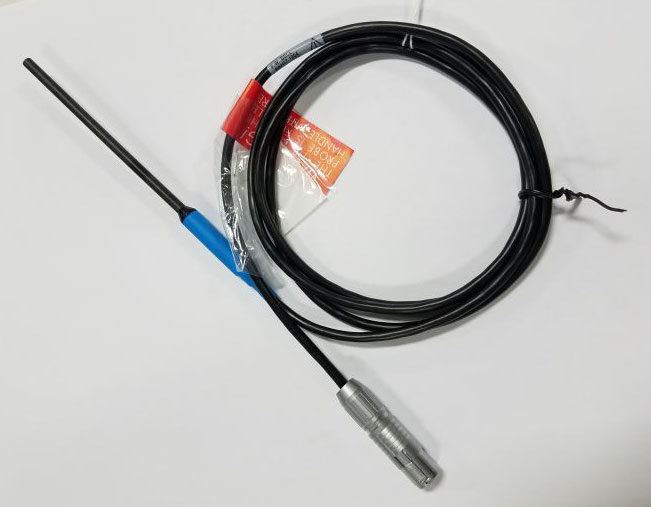

SAH17-1904 - Gauss Meter Probe for the 5170 Series
- Wide ranging applications
- Laboratory friendly
- Factory calibrated per NIST
Stem length: 4"
Stem thickness" 0.187" ± .003"
Cable length: 1.524 m (5')
Stem material: Rigid phenolic\
Corrected linearity: 1.0% / 20 kG
Sensitivity: 1X
Operating temperature: 0ºC to +75ºC
Frequency response: DC to 10 kHz
|
|
|
